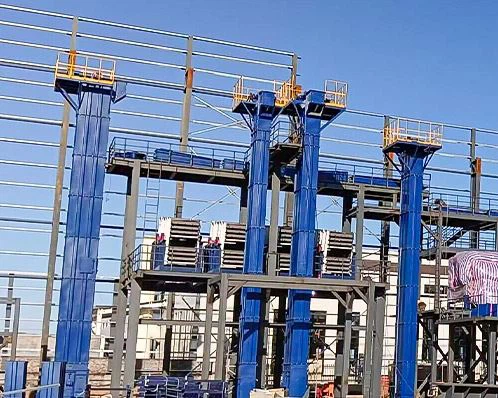

Vertical Bucket Conveyor

Our vertical bucket conveyor is a mechanical device that uses a series of buckets evenly fixed on a circular traction component (such as a belt or chain) to continuously and vertically lift granular materials (powder, granular, and small block-shaped). It has significant advantages such as large conveying capacity, high lifting height, stable and reliable operation, and long service life. Our equipment is suitable for conveying non-abrasive and low-abrasive materials without abrasion, such as coal, cement, stones, sand, clay, ores, etc. Since the traction mechanism of our Bucket Elevator is a circular chain, it allows the transportation of materials with higher temperatures (with the material temperature not exceeding 250℃), and the maximum conveying height can reach 40 meters to 80 meters.





In the grain industry, depending on the different traction components, the common models mainly include:

• TD/TDG series (band type): Uses rubber belts as the traction component. It is characterized by smooth operation, low noise, and large conveying capacity. It is one of the most commonly used models in the grain and feed industries. The TDG series is developed based on the TD type, specifically for grain transportation characteristics. It usually adopts integral stretched buckets and strong-type traction belts.
• TH series (chain type): Uses circular chains as the traction component. It is suitable for occasions with a large lifting height and materials with certain abrasiveness. It has high structural strength and a long service life.
• NE series (plate chain type): Uses high-strength plate chains. It belongs to heavy-duty elevators and is suitable for occasions with a large conveying capacity, slightly higher material temperature (up to 250°C), or certain abrasiveness.

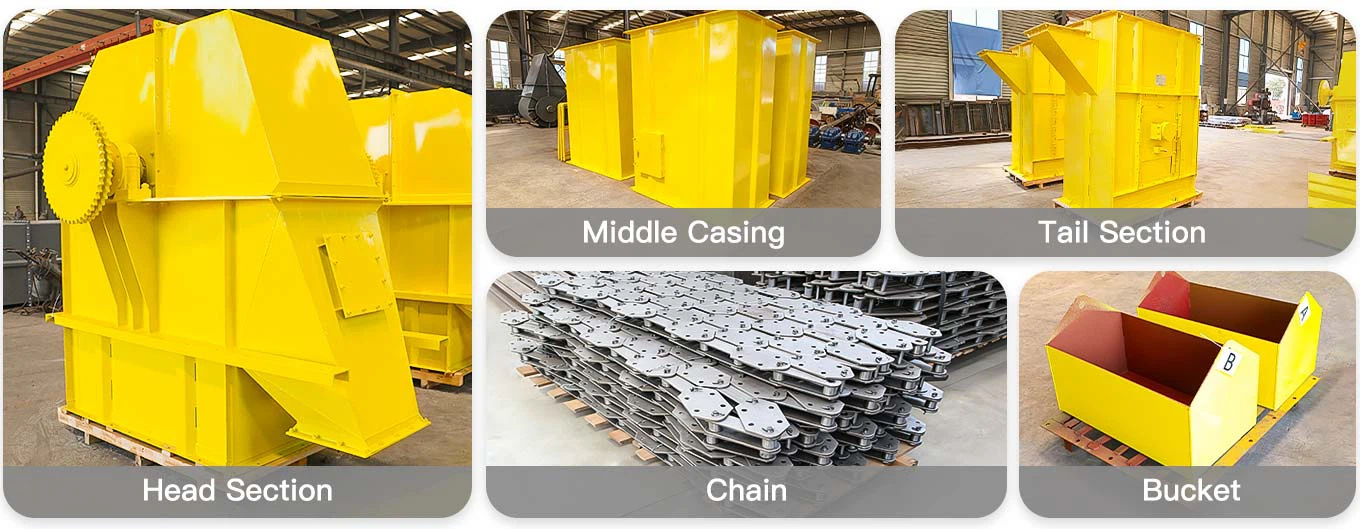

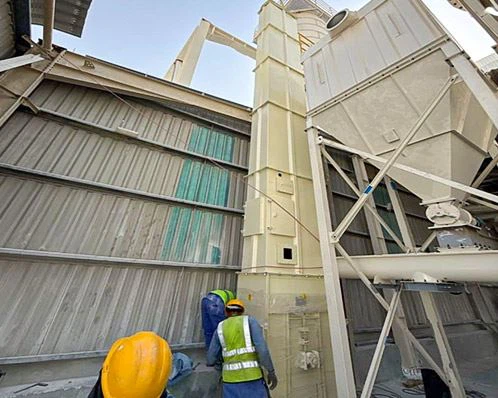

Our vertical bucket conveyor consists of a running section (bucket and traction belt), an upper section with drive rollers, a lower section with tension rollers, a middle casing, a drive unit, and a backstop brake.

Its principle is that the bucket scoops up material from the lower storage, lifts it to the top with the conveyor belt or chain, passes it over the top pulley, flips it downwards, and then pours the material into the receiving trough.

Belt-driven Belt Bucket Elevators typically use rubber belts, mounted on the lower or upper drive rollers and the upper and lower idler rollers. Chain-driven Chain Bucket Elevators generally have two parallel drive chains, with a pair of drive sprockets at the top or bottom and a pair of idler sprockets at the bottom or top.



























Series / Model	Traction Component	Key Features & Suitable Scenarios	Typical Application Industries
TD / TDG Series	Rubber Belt	Most common. Simple structure, smooth and quiet operation. Suitable for lifting powdery, granular, and small lump materials with no or low abrasiveness. TDG is a widely used model in China specifically for grain handling.	Grain & Oil, Feed, Starch, Flour, Chemical Raw Materials, etc.
TH / NE Series	Round Link Chain	Utilizes forged circular chain for high strength and heat resistance (material temperature up to 250°C). Suitable for heavier, moderately abrasive, or high-temperature materials.	Cement, Mining (Ore, Coal), Fertilizer, Metallurgy, Power Generation, etc.

The true value lies in solving your actual transportation problems. If the above scenarios do not fully cover your needs, this is precisely the beginning of our in-depth cooperation. Please contact us and let us transform your specific challenges into an efficient and reliable transportation system.





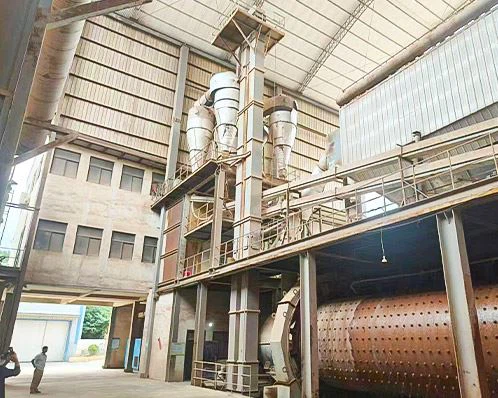

The grain bucket elevator is a core conveying equipment in the grain processing and storage industry. Its typical applications include:

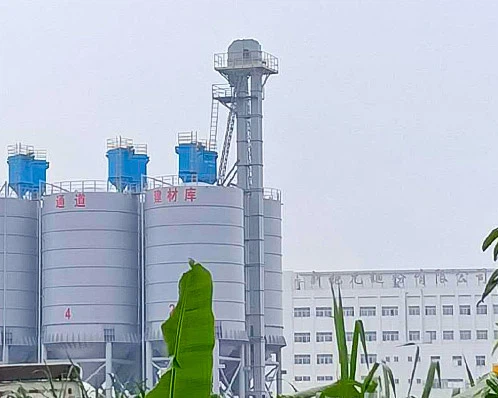

Grain Storage: grain warehouses, the harvested grains are lifted from the unloading pit to tall silos or warehouse-style silos for storage.
Grain Processing: In flour mills, rice processing plants, and feed mills, it is used to connect various processes such as cleaning, grinding, screening, mixing, and packaging, achieving vertical material transfer.
Oil And Grain Processing: In oil mills and grain deep processing enterprises, it is used to convey oil-bearing crops, finished meal, etc. materials.
Food And Auxiliary Materials: It is used to convey food raw materials or auxiliary materials such as sugar, salt, starch, additives, etc.









EXCT is committed to open-pit mining (coal industry, oil shale, etc.) crushing and screening production system, EPC general contract construction and production and operation services, as well as large crushing equipment, screening equipment, conveying equipment, feeding equipment, environmental protection equipment and other special equipment research and development, manufacturing, sales and service as one of the modern high-tech enterprises.

We have more than 60 national patents and have received provincial and ministerial scientific achievement certifications. Our core products have attained performance metrics that meet leading international standards, earning multiple national and provincial technology awards.

We create value for global mining customers through advanced process technology, enhancing operational reliability, efficiency, and precision. Leveraging sophisticated equipment and deep industry knowledge, we innovate across material crushing, screening, conveying, dust removal, storage, and automation systems. Our service system offers one-stop professional support throughout the project lifecycle-from engineering consulting and scheme design to equipment production, installation, commissioning, spare parts supply, and operational support.

Aligned with evolving global economic trends, we are building an international presence focused on technological and service innovation. We cultivate versatile talent and experienced service teams to strengthen our competitiveness in the international market, delivering high-value solutions that support the advancement of national industries worldwide.







Model		TDG250	TDG315	TDG400	TDG500	TDG630	TDG800	TDG1000	TDG1250	TDG1600
Capacity(m3/h)		72	101	158	220	348	492	788	1220	1541
Bucket	Volume(L)	6.5	10	16	25	40	64	102	161	255
	Pitch(Mm)	325	360	420	460	520	580	650	720	820
Belt &Bucket Weight(Kg/m)		33	33.2	42.2	62.3	78.53	106	145	155.5	223
Speed (m/s)		1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Max Lift Height(m)		80	80	80	80	80	80	80	80	80
