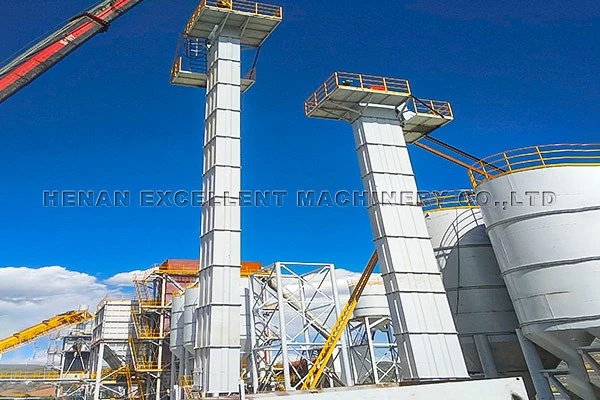

A Bucket Elevator is a type of mechanical equipment specifically designed for vertical transportation of quartz sand. It scoops up the material from the storage below through the hopper, and then lifts it up along the conveyor belt or chain to the top. After passing around the top pulley, it pours the material into the receiving trough. This working principle continuously lifts the quartz sand from the lower position to the higher position.
Quartz Sand Bucket Elevator Advantages

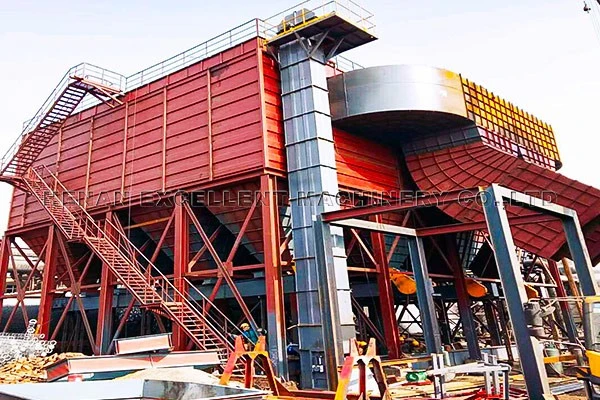

Sealed Dust Prevention
Quartz sand is mostly fine particles and powder-like, so there is a lot of dust. The quartz sand bucket elevator adopts a fully enclosed casing design, effectively preventing dust from flying. This not only improves the working environment of the workshop and meets environmental protection requirements, but also avoids the scattering and loss of quartz sand raw materials, reducing raw material waste.
- Wear-Resistant Design
Quartz sand has high hardness. Ordinary conveying equipment is prone to rapid wear. However, our Quartz Sand Bucket Elevator uses materials with strong wear resistance, such as wear-resistant steel plates, manganese steel bins, high-strength belts / chains, etc., which significantly reduces the frequency of replacement of vulnerable parts and lowers maintenance costs.
- Structural Strength Optimization
Quartz sand has a high density and strict requirements for the equipment's bearing capacity. The casing, drive device and supporting structure of the quartz sand bucket elevator have all undergone strength optimization. They are made by welding thick steel plates or steel sections to ensure stable operation under heavy load conditions.
- Continuous Conveying
The equipment operates at a constant speed in a cyclic manner. The hopper scoops the material smoothly and discharges it centrifugally. During the lifting process, the quartz sand is not subjected to intense squeezing or collision, which effectively reduces particle fragmentation and ensures the integrity of the quartz sand particle size. It meets the strict requirements of the glass and chemical industries for raw material particle size. At the same time, it can continuously supply materials 24 hours a day, ensuring the continuous operation of the entire production line.
- Small Floor Area
The site planning for quartz sand processing plants, glass factories, and chemical plants is compact. Bucket Elevators are installed vertically, enabling large-height vertical feeding. Compared with inclined belt conveyors, it significantly saves floor space and can directly connect with drying machines, ball mills, silos and other high-position equipment. The production line layout is more reasonable.
- Low Energy Consumption
This equipment has a low driving power. It adopts an inflow feeding method, a gravity-induced discharging design, and a densely arranged large-capacity hoppers. During the material lifting process, there is almost no backflow or leakage of materials. Therefore, the ineffective power is low, and it can save a large amount of energy costs for you during long-term operation.
Quartz Sand Bucket Elevator Application Scope
This equipment is typically suitable for processing quartz sand with relatively low lifting force. Its applicable scenarios can include, but are not limited to, the following situations:
Medium And Small-Sized Quartz Sand
Usually, a bucket elevator can effectively lift medium and small-sized quartz sand. These particles are of moderate size and not too large or heavy.
Fine-Grained Quartz Sand
For some fine-grained quartz sand, bucket elevators can also be used for lifting, but adjustments need to be made based on specific equipment parameters and operational conditions.
Coarse-Grained Quartz Sand
For overly large quartz sand particles, the bucket elevator may have issues with low lifting efficiency or inability to lift them. Therefore, it is necessary to select the appropriate lifting equipment based on the specific situation.
Quartz Sand Bucket Elevator Application Scenarios
- Quartz Sand Mine
The quartz sand extracted from the mine shaft is lifted to the surface, and the quartz sand in the storage area is transported to the crushing and screening workshop.
- Quartz Sand Processing Plant
The large pieces of quartz stone are sent to the crusher for crushing, the crushed quartz sand is sent to the screening machine for screening, the wet quartz sand is sent to the dryer for drying, the quartz sand is sent to the grinder for grinding, and the finished quartz sand is sent to the packaging machine for packaging.
- Construction Materials Industry
Quartz sand is widely used in the construction industry for processes such as concrete mixing and cement manufacturing. Bucket elevators can be used to lift quartz sand from the ground or mines to different production lines or process equipment, thereby improving production efficiency.
- Glass Manufacturing Industry
Quartz sand is one of the main raw materials for glass production. Bucket elevators can be used to transport quartz sand to equipment such as glass furnaces, ensuring the continuity of the production process.
- Chemical Industry
Quartz sand also has extensive applications in the chemical field, such as in the production of silica gel. Bucket elevators can be used to handle and transport quartz sand, meeting various process requirements.
- Mining Industry
During the mining and processing of quartz sand, bucket elevators can be used to lift the raw quartz sand or the processed quartz sand and transport it to the screening equipment, crushing equipment and other process units.
- Construction Site
Vertical Bucket Elevator can be used to lift quartz sand from the ground to a high altitude, meeting the raw material requirements of equipment such as concrete mixing stations.
If you are still troubled by the excessive dust during quartz sand transportation, frequent equipment wear, and limited factory space? Feel free to contact us at any time. We specialize in manufacturing quartz sand-specific Bucket Elevators, which are environmentally friendly, wear-resistant, durable, capable of continuous feeding, and have lower energy consumption. They are suitable for vertical transportation in various industries such as mining, glass, chemical, and building materials. Now, by making a consultation, you can obtain a free equipment selection plan and detailed quotations. We also offer non-standard customization and one-stop installation and after-sales services.
