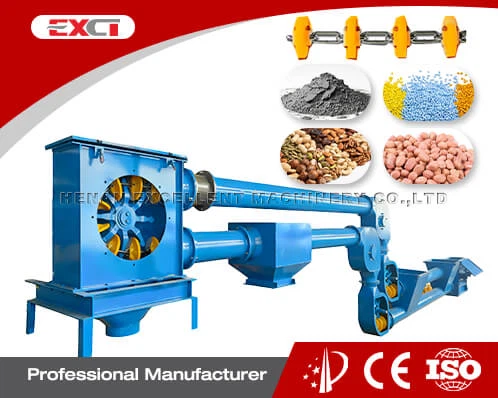

![[[smallImgAlt]]](/uploads/16873/tubular-cable-conveyors69f97.jpg)
Our tubular cable conveyors adopt a low-speed and smooth transmission design. The material and the equipment have static or low-speed frictional contact, which not only reduces the material damage rate to an extremely low level, protecting the integrity of the particle shape, but also reduces the wear of the equipment itself and extends the service life of the entire machine. At the same time, it has explosion-proof and airtight design, and the fully enclosed transportation has no dust pollution.
Compared with the traditional screw conveyor, energy consumption can be saved by more than 30%. The horizontal transportation distance can reach 60m, and the vertical lifting height can reach 40m. It can meet the material transportation needs of large factories for long distances and across floors, significantly reducing operating costs, perfectly meeting the safety production and environmental protection requirements of the chemical and mineral industries. Even in flammable and explosive working conditions, it can also achieve safe material transportation.
Tubular Cable Conveyors Structure
Tubular Cable Conveyors Details
Tubular Cable Conveyors Chain Type Comparison
| Comparison Item | Steel Rope Type | Ring Chain Type | Plate Chain Type |
| Structural Design | Multi-strand steel rope with discs | Alloy steel round link chain with discs | Heavy-duty steel plate chain with links and pins |
| Flexibility | Very High | Very High | Low |
| Bending Capability | Small bending radius, excellent for multiple bends | Big bending radius, not suitable for multiple bends | Low flexibility, not suitable for tight bends |
| Layout | Suitable for complex layouts with multiple bends along the X, Y, and Z axes | Suited for straight or simple layouts | Ideal for straight or moderate bends |
| Conveying Distance | Medium | Long | Medium To Long |
| Chain Load Capacity Per Unit Length | Medium | High | High |
| Capacity | Medium capacity | Large Capacity | High |
| Impact Resistance | Medium | High | Very High |
| Wear Resistance | Medium | High | Very High |
| Suitable Materials | Powders, granules, mildly abrasive materials | Abrasive, high-density materials | Abrasive, heavy-duty materials, large bulk materials |
| Recommended Applications | Limited space, multiple bends, high flexibility required | Heavy-duty, long-distance, continuous operation |
Heavy-duty, high load capacity, long operational life |
Why Choose Tubular Cable Conveyors?
|
Comparison Item |
Tubular Cable Conveyors |
Screw Conveyor |
Pneumatic Conveying |
Bucket Elevator |
|
Sealing & Dust Control |
Fully enclosed system with minimal dust leakage; environmentally friendly |
Open trough, usually requires covers and dust collection systems |
Fully enclosed, but requires high-pressure air system |
Fully enclosed; good dust containment |
|
Material Integrity |
Excellent; gentle conveying, almost no degradation or segregation |
Shear and material damage likely |
High-velocity air causes separation and product degradation |
Good; gentle handling, though minor impact damage may occur |
|
Adaptability to Complex Routes |
High; supports horizontal, vertical, and multi-bend layouts |
Limited; not suitable for complex routing |
Flexible piping, but at very high energy cost |
Low; mainly for vertical or limited-bend layouts |
|
Energy Consumption |
Low; slow speed, low power, high efficiency |
Medium |
Very high |
High, especially for large lifting heights |
|
Maintenance & Service Life |
Simple maintenance, low wear, long service life |
Screw flights wear quickly and require frequent replacement |
High maintenance; filters and blowers require regular servicing |
Medium; chains or belts require periodic inspection |
|
Material Compatibility |
Powders, granules, light lumps, and blended materials; very wide application range |
Powders and granules; poor for sticky or caking materials |
Mainly dry powders; pressure control is complex |
Suitable for powders and granules, especially heavy bulk materials |
|
Installation Flexibility |
Very high; compact layout, space-saving |
Moderate |
Flexible, but requires extensive auxiliary equipment |
Limited; mainly vertical installation |
|
System Complexity / Initial Investment |
Low |
Low |
High (including compressors and separation systems) |
Medium |
|
Noise & Working Environment |
Low-noise operation, clean and quiet |
Medium noise |
High noise |
Medium noise, especially at high lifting speeds |
Tubular Cable Conveyors Applications
Tubular Cable Conveyors is used by almost any industry that needs to move materials gently and quickly.
Powdered Materials
Common materials: cement, lime, carbon black, fertilizers, pigments, dyes, paints, titanium dioxide, iron oxide, ceramic powder, silica gel powder, activated carbon, etc.
Features: During the transportation process of these materials by the pipe chain conveyor, they can achieve stable and continuous flow without causing wear to the equipment. The sealing performance of the pipe chain conveyor can effectively prevent dust from escaping, protecting the working environment and the health of the employees.
Granular Materials
Common materials: grains, sand, stones, ores, plastic particles (such as PVC, PP, PE, etc.), urea, ammonium chloride, ammonium bicarbonate, etc.
Features: The pipe chain conveyor can ensure that these granular materials do not break or get clogged during the conveying process, guaranteeing the conveying efficiency. At the same time, its stable conveying performance also helps to reduce energy consumption and operating costs.
Small Particle Materials
Common materials: coal, mineral fragments, solid pesticides, fish oil, etc.
Features: During the transportation process of these materials through the pipe chain conveyor, by appropriately adjusting the conveying speed and angle, it is ensured that the materials can flow smoothly within the pipeline. The flexibility and adaptability of the pipe chain conveyor enable it to handle block-shaped materials of different shapes and sizes.
Other Special Materials
Such as copper ore powder, coal powder, block phosphate, bauxite, clay powder, silica, dolomite powder, sawdust powder, glass fiber, etc.
Features: These materials may possess unique physical or chemical properties, such as being fragile, flammable, or explosive. The airtightness and stability of the pipe chain conveyor make it an ideal choice for transporting these special materials.
Food
Coffee
Iron Oxide
Fertilizer
Sludge Particles
Dyes
Unable To Find Your Product?
If your product is not listed here, please contact us to learn whether or not EXCT Tubular Drag Chain Conveyors are the right solution for your application.
Remember that you can also request a product test if necessary.
Tubular Cable Conveyors Packaging And Delivery
As a manufacturer of chain and disc conveyor, we take full responsibility for every step from custom design, production and manufacturing to loading and shipping. We can customize equipment of various specifications as per customer requirements and achieve concurrent and cross-regional distribution of multiple devices. Moreover, with our powerful production and logistics system, we ensure that customer orders can be delivered without any waiting time, fully meeting the customized needs of customers.
Tubular Cable Conveyors Site
Our chain and disc conveyor, with its outstanding adaptability and stability, has been deeply integrated into the production sites of numerous industries such as food, chemical, pesticide, ore, building materials, plastic, new energy, and environmental protection. It has become the core equipment for material transportation in various fields, fully meeting the material transportation needs of different industries.
Tubular Cable Conveyors Specifications
| Model | Power(kw) | Pipe Diameter | Capacity(m/h) |
| TCA-80 | 0.37 | DN80 | 0.3-5 |
| TCA-100 | 0.4-4 | DN100 | 0.45-8 |
| TCA-150 | 2-7.5 | DN150 | 3-19 |
| TCA-200 | 3-11 | DN200 | 5-40 |
| TCA-250 | 3-18.5 | DN250 | 15-60 |
* The above technical specifications are for reference only, we can also provide customized solutions according to customer requirements.
