The Tubular Drag Conveyors is a professional continuous conveying equipment for powdery, small granular and small block-shaped bulk materials. It can achieve three-dimensional combined transportation including horizontal, inclined and vertical directions. It is widely used in fields such as fine chemicals, pesticides, minerals, building materials, and food. The equipment moves the materials through the chain plates or circular disc scraper belts inside the sealed pipeline. Horizontal transportation relies on the thrust of the chain plates to form a stable material flow, and vertical transportation completes the lifting with the lateral side pressure. The fully enclosed design completely prevents dust from escaping, and its environmental protection performance is outstanding.
Tubular Drag Conveyors Structure
Tubular Drag Conveyors Details

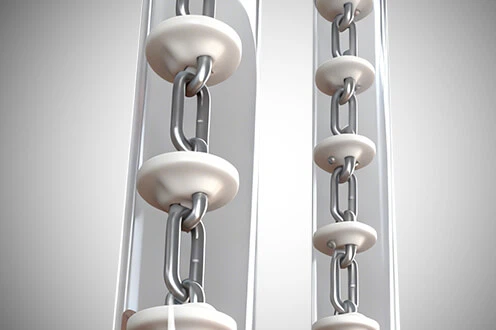

Tubular Drag Conveyors Chain Type Comparison
| Comparison Item | Steel Rope Type | Ring Chain Type | Plate Chain Type |
| Structural Design | Multi-strand steel rope with discs | Alloy steel round link chain with discs | Heavy-duty steel plate chain with links and pins |
| Flexibility | Very high | Very high | Low |
| Bending Capability | Small bending radius, excellent for multiple bends | Big bending radius, not suitable for multiple bends | Low flexibility, not suitable for tight bends |
| Layout | Suitable for complex layouts with multiple bends along the X, Y, and Z axes | Suited for straight or simple layouts | Ideal for straight or moderate bends |
| Conveying Distance | Medium | Long | Medium to Long |
| Chain Load Capacity Per Unit Length | Medium | High | High |
| Capacity | Medium capacity | Large capacity | High |
| Impact Resistance | Medium | High | Very High |
| Wear Resistance | Medium | High | Very High |
| Suitable Materials | Powders, granules, mildly abrasive materials | Abrasive, high-density materials | Abrasive, heavy-duty materials, large bulk materials |
| Recommended Applications | Limited space, multiple bends, high flexibility required | Heavy-duty, long-distance, continuous operation |
Heavy-duty, high load capacity, long operational life |
Tubular Drag Conveyors Features
Excellent Sealing Performance
The fully enclosed conveying environment not only prevents dust from leaking out, but also avoids the influence of external humidity and impurities on the materials, ensuring the purity of the materials and meeting the strict hygiene standards of industries such as food and medicine.
No Residue Of Materials
The materials move smoothly within the pipeline, with the residue amount controlled below 0.1%. There is almost no spillage or residue, which reduces material waste. It is particularly suitable for the transportation of high-value materials and helps lower the enterprise's material costs.
Support Multi-mouth Design
A single piece of equipment can be designed with multiple feed ports and discharge ports, which can supply materials to multiple workstations simultaneously. There is no need for multiple pieces of equipment to supply materials separately, thereby improving the efficiency of material distribution and optimizing the production process layout.
Save Floor Space
Unlike belt conveyors that rely on long-distance horizontal floors, "air conveyance" can be achieved through pipe turns and vertical lifts. For example, materials can be vertically transported from the first-floor storage area to the third-floor production line, significantly saving floor space and improving the utilization rate of the factory space.
Customized Design And Manufacturing
We can conduct customized design and manufacturing based on the production needs of users, the characteristics of materials, and the layout of the factory. We can create exclusive material transportation solutions that perfectly meet the individualized production needs of different enterprises.
Operates Stably And Reliably
It is composed of components such as the drive device, tensioning device, steering device and sealed pipeline. It adopts optimized sprockets and wear-resistant conveying discs, with a reasonable structural design. The operation process is stable and reliable, significantly reducing the occurrence rate of equipment failures and the possibility of production interruptions.
Contact Us For Best Price
Submit your requirements and talk with one of our technical engineer about your project.
Tubular Drag Conveyors Applications
Tubular Drag Conveyors is used by almost any industry that needs to move materials gently and quickly.
| Food Industry: | Such as flour, starch, grains, milk powder, food additives, etc. |
|
Fine Chemicals: |
Such as pigments, dyes, coatings, carbon black, titanium dioxide, iron oxide, ceramic powder, calcium carbonate, light calcium, bentonite, molecular sieve, kaolin, silica gel powder, activated carbon, etc. |
| Pesticide Ores: | Such as urea, ammonium chloride, ammonium bicarbonate, baking soda powder, solid pesticides, tungsten powder, pesticide additives, copper concentrate powder, coal powder, phosphate powder, alumina powder, etc. |
| Building Materials: | Such as cement, clay, yellow sand, quartz sand, clay powder, silica, limestone powder, dolomite powder, wood chip powder, glass fiber, silicon dioxide, talc powder, etc. |
Tubular Drag Conveyors Packaging And Delivery
From the scheme design to production manufacturing, and then to vehicle loading and delivery, our customized pipe chain conveyor service controls the entire process! The exclusive customized equipment is successfully dispatched, precisely matching the customer's production scenarios.

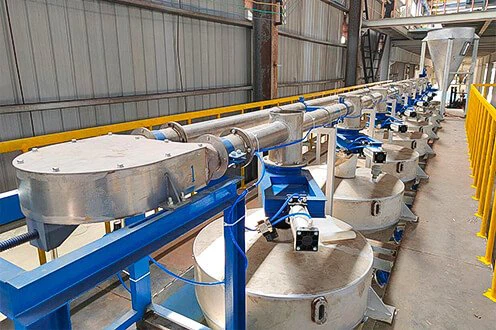

Tubular Drag Conveyors Site
Whether it is the raw material conveying line in the food industry, the powder transfer process in the chemical workshop, or the material transportation process in the new energy factory, our Tubular Drag Conveyors have been deeply integrated into various industrial sites, helping to ensure efficient production operations.
Tubular Drag Conveyors Specifications
| Model | Power(kw) | Pipe Diameter | Capacity(m/h) |
| TCA-80 | 0.37 | DN80 | 0.3-5 |
| TCA-100 | 0.4-4 | DN100 | 0.45-8 |
| TCA-150 | 2-7.5 | DN150 | 3-19 |
| TCA-200 | 3-11 | DN200 | 5-40 |
| TCA-250 | 3-18.5 | DN250 | 15-60 |
* The above technical specifications are for reference only, we can also provide customized solutions according to customer requirements.
Get The Most Suitable Product Solution And Quotation For Free!!!
Submit your requirements and talk with one of our technical engineer about your project.
About EXCT
EXCT is committed to open-pit mining (coal industry, oil shale, etc.) crushing and screening production system, EPC general contract construction and production and operation services, as well as large crushing equipment, screening equipment, conveying equipment, feeding equipment, environmental protection equipment and other special equipment research and development, manufacturing, sales and service as one of the modern high-tech enterprises.
We have more than 60 national patents and have received provincial and ministerial scientific achievement certifications. Our core products have attained performance metrics that meet leading international standards, earning multiple national and provincial technology awards.
We create value for global mining customers through advanced process technology, enhancing operational reliability, efficiency, and precision. Leveraging sophisticated equipment and deep industry knowledge, we innovate across material crushing, screening, conveying, dust removal, storage, and automation systems. Our service system offers one-stop professional support throughout the project lifecycle-from engineering consulting and scheme design to equipment production, installation, commissioning, spare parts supply, and operational support.
