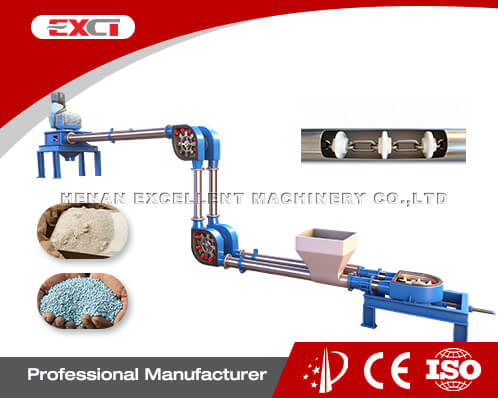

The Tubular Chain Conveyors is composed of a drive unit, tensioning device, steering mechanism and a sealed pipeline. It adopts an optimized design for sprockets and wear-resistant conveying discs, resulting in a low rate of material damage during operation and significantly lower energy consumption compared to traditional conveying equipment. The horizontal conveying distance can reach 60 meters, and the vertical lifting height is 40 meters. The pipeline has no dead zones and does not get clogged, enabling it to stably handle various bulk materials with a bulk density ranging from 0.2 to 2.0 tons per cubic meter.

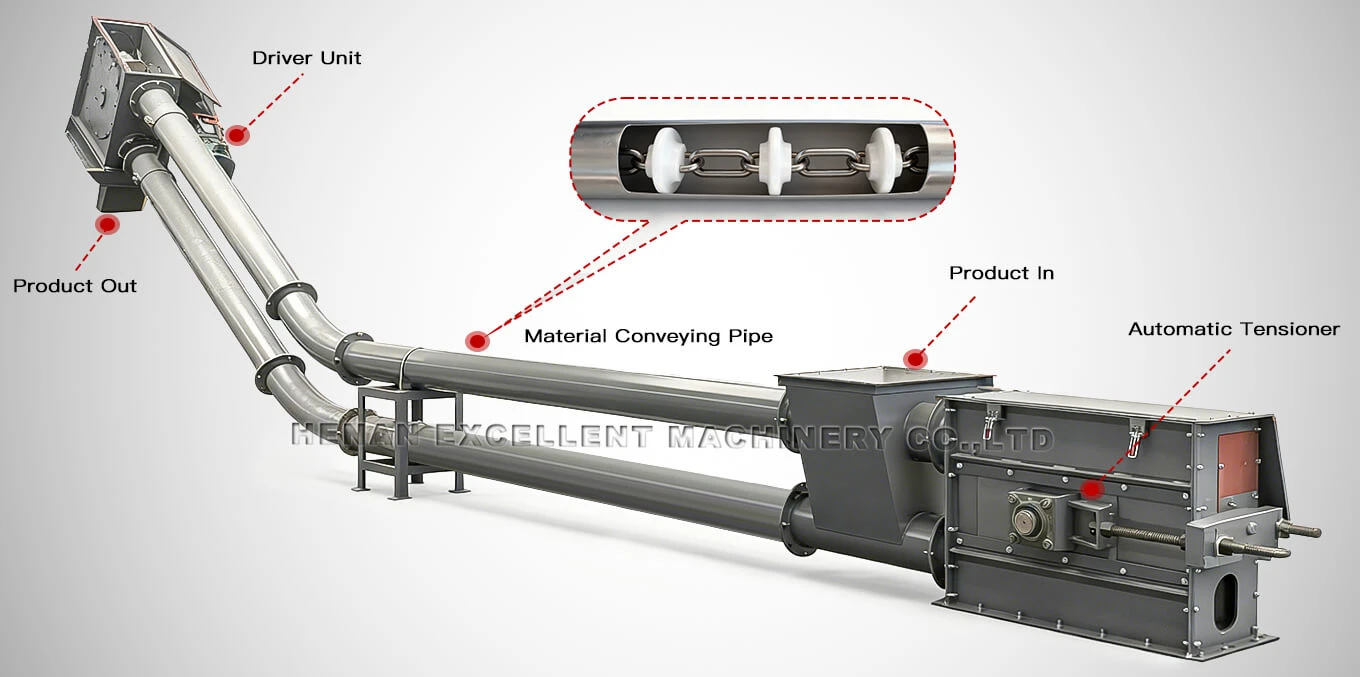

Tubular Chain Conveyors Structure

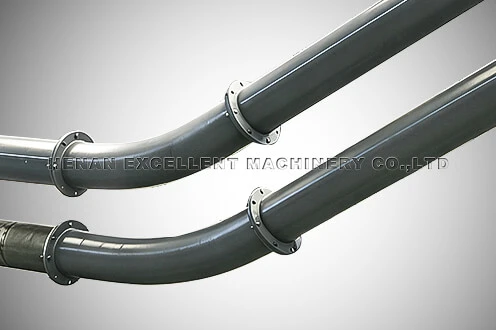

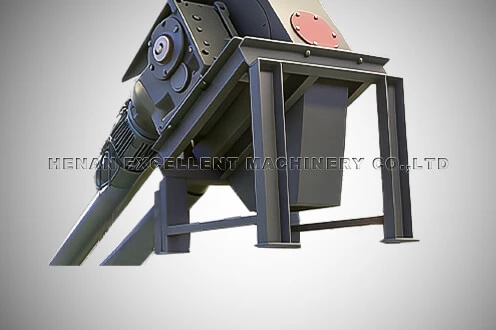

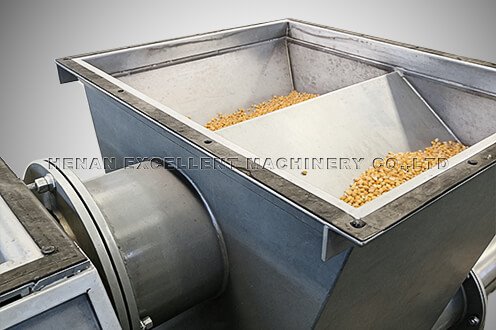

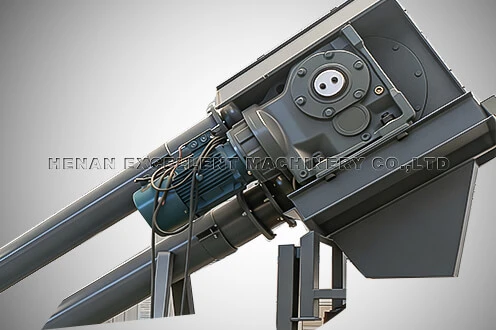

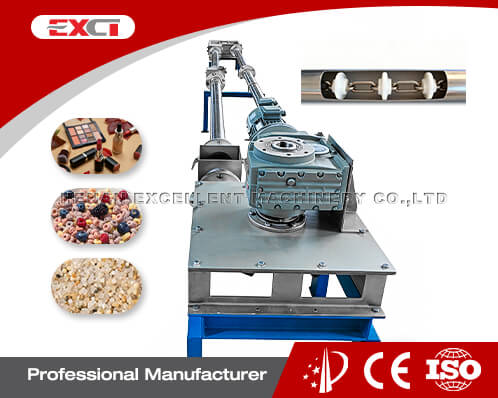

Tubular Chain Conveyors Details
Why Use Tubular Chain Conveyors?
Fully enclosed dust-free conveying
The materials are conveyed throughout the entire process within the sealed pipeline, completely preventing dust from escaping. This not only meets the environmental emission requirements but also protects the occupational health of the on-site operators and avoids health risks caused by dust pollution.
Material customization
The pipeline can be made of food-grade stainless steel or nylon material. It can also be equipped with different types of discs such as wear-resistant rubber or stainless steel to meet the hygiene standards of the food industry and also to handle the transportation of corrosive materials like salts and chemical raw materials.
Long conveying distance
The horizontal conveying distance can reach 60 meters, and the lifting height can reach 40 meters. The conveying distance is more than several times that of a spiral conveyor, capable of covering a larger production operation area. It is suitable for large factories and cross-floor conveying scenarios.
No material blockage
The stable material flow is formed by the thrust of the chain links and the lateral side pressure. There are no dead zones in the pipeline, and the material is less likely to get blocked. Compared with the screw conveyor, it has stronger tolerance for overload and uneven feeding, ensuring the continuity of the conveying process.
Easy maintenance
Our Tubular Chain Conveyors adopt a modular design, enabling maintenance personnel to quickly locate and repair faults. Core components such as the chains and discs are made of wear-resistant materials, ensuring a long service life. Daily maintenance only requires regular checks of the chain tension, significantly reducing downtime for maintenance.
Explosion-proof and airtight design
It features explosion-proof and airtight designs, which can be applied in production environments where there are flammable and explosive materials such as in the chemical and pesticide industries. This helps reduce the risk of safety incidents and meets the safety operation requirements of specific industries.
Submit your requirements and talk with one of our technical engineer about your project.
Tubular Chain Conveyors Applications
Tubular Chain Conveyors is used by almost any industry that needs to move materials gently and quickly.
| Chemical Industry | Powdered materials, granular materials, small lumpy materials (such as plastic pellets, chemical fertilizers, pigments, etc.) |
| Food Processing Industry | Powdered food raw materials (such as flour, powdered sugar), fragile food raw materials |
| Building Materials Industry | High-abrasion materials (such as cement, gypsum powder), conventional building materials, extra-large granular materials (esuch as crushed stone) (Note: The conveying efficiency for extra-large granular materials is relatively low) |
| Environmental Protection And Recycling Industry | Irregularly shaped waste materials (such as crushed plastic fragments, metal shavings), toxic and hazardous waste materials |
| Agriculture And Feed Production Industry | Agricultural products (such as grains), feed raw materials, high-humidity materials |
Tubular Chain Conveyors Packaging And Delivery
From the scheme design to production manufacturing, and then to vehicle loading and delivery, our customized pipe chain conveyor service controls the entire process! The exclusive customized equipment is successfully dispatched, precisely matching the customer's production scenarios.

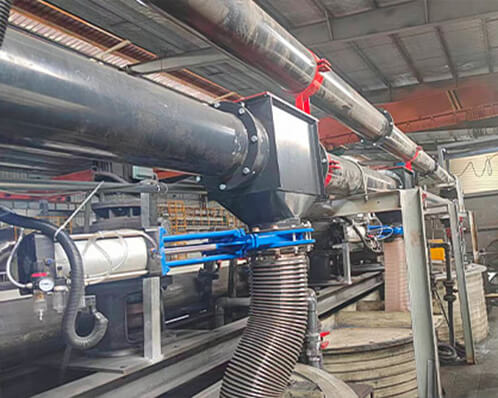

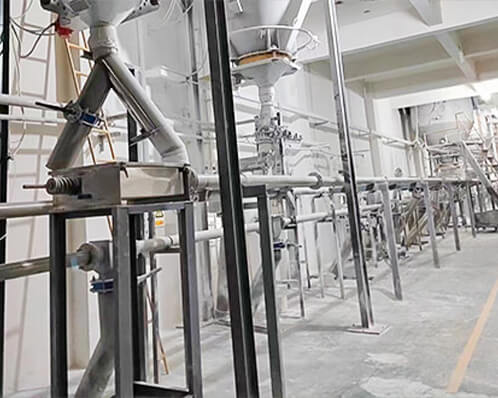

Tubular Chain Conveyors Site
Whether it is the raw material conveying line in the food industry, the powder transfer process in the chemical workshop, or the material transportation process in the new energy factory, our Tubular Chain Conveyors have been deeply integrated into various industrial sites, helping to ensure efficient production operations.
Tubular Chain Conveyors Specifications
| Model | Power(kw) | Pipe Diameter | Capacity(m/h) |
| TCA-80 | 0.37 | DN80 | 0.3-5 |
| TCA-100 | 0.4-4 | DN100 | 0.45-8 |
| TCA-150 | 2-7.5 | DN150 | 3-19 |
| TCA-200 | 3-11 | DN200 | 5-40 |
| TCA-250 | 3-18.5 | DN250 | 15-60 |
* The above technical specifications are for reference only, we can also provide customized solutions according to customer requirements.
Customized Service For Tubular Chain Conveyors
- Material Upgrade: Corrosion-resistant 2205 material, food-grade Teflon coating, 316L
- Function Expansion: Heating/cooling jacket, explosion-proof certification, intelligent control, supports 5G
- Special Design: Multiple feed ports, large inclination conveyor, high-temperature-resistant chain
Get The Most Suitable Product Solution And Quotation For Free!!!
Submit your requirements and talk with one of our technical engineer about your project.
