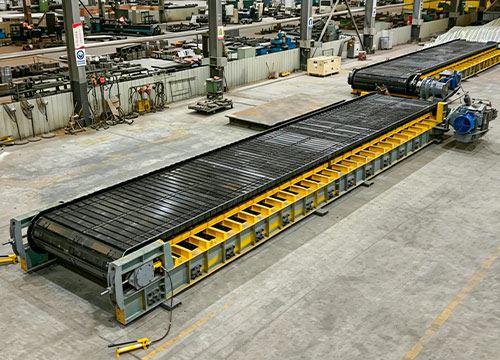

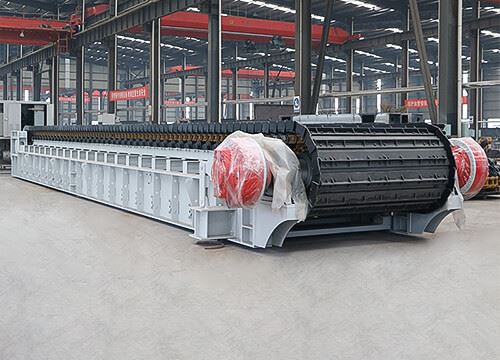

How Apron Plate Feeder Work?
When the Apron Feeder is transporting minerals, it is powered by a flameproof variable-frequency motor. After passing through a coupling and a planetary reducer for deceleration and torque increase, it drives the sprocket shaft to rotate. Through the meshing of the sprocket and the chain, the pan is driven to perform continuous linear motion.
The pan is stably supported by the support roller and the return roller. The tail tension device can adjust the chain tension, ensuring precise meshing and preventing deviation or jamming.
After the ore falls from the silo into the pan, it is smoothly conveyed to the subsequent equipment. It supports a continuous speed adjustment range of 0.026 - 0.26 m/s. The rigid frame and the buffering structure are adapted to the heavy-load impact of the ore. The sealing design prevents dust from entering, ensuring continuous and stable operation.
Apron Plate Feeder Details

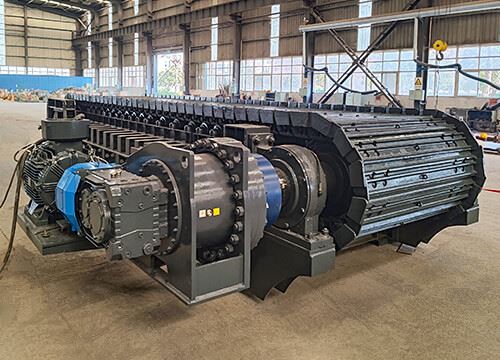

Drive Device

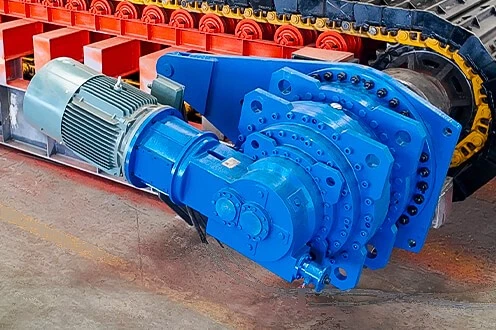

Drive device utilizes an AC variable frequency drive system that integrates software with electronic and mechanical systems to provide precise conveyor speed control and overload protection.
The main components of the drive device can choose Siemens, ABB, Sew, Flender and other well-known domestic and foreign brands of motor and gearbox, to provide stable and continuous kinetic energy output, with high efficiency, low noise, low vibration and other characteristics.

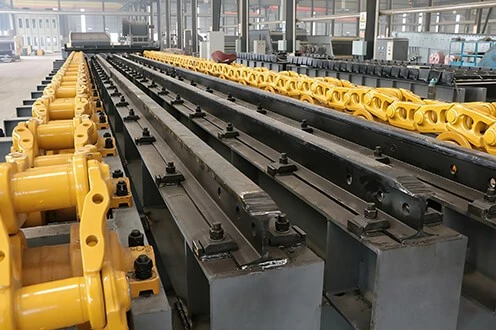

Buffer Track & Frame
Rugged steel support frame with impact rails to limit pans deflection, thus eliminating permanent bending of the pans. And it can withstands all loading conditions during starting and operation. Lifting lugs are installed in the appropriate position of the frame for easy installation and future maintenance.

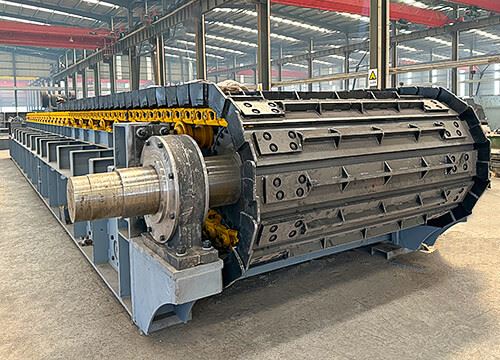

Sprocket

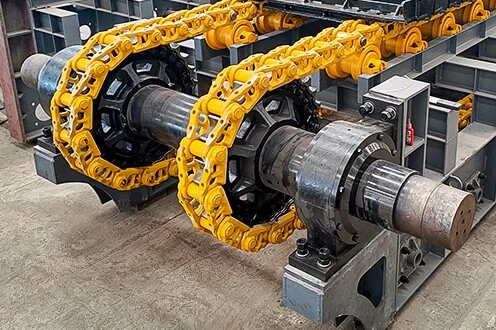

Cast manganese segmental sprockets bolted to heavy steel hubs keyed to oversized front drive shaft.
The segmental sprockets can be replaced in a very short time without needing to dismantle or remove other parts of the feeder.

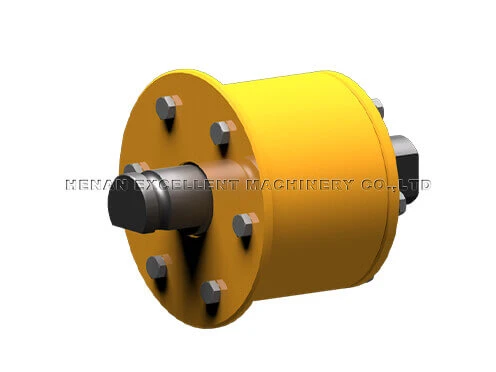

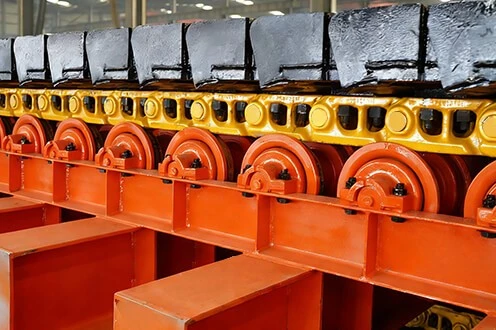

Chains & Rollers

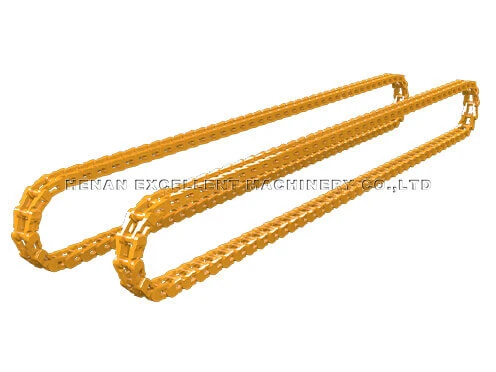

The chain uses an off the shelf dozers chain (Track chain), which is characterized by small pitch error, smooth movement, high strength, large pulling force, and the chain has a self-lubricating device and a sealing device. The rollers are designed as a standard tractor rollers with sealed and lifetime lubricated bearings, mounted on the main feeder frame. The rollers has suitably spaced to provide adequate support for the chain assembly. The Chains & Rollers can use world famous brands according to customer needs, such as Caterpillar, Komatsu, and Shantui.

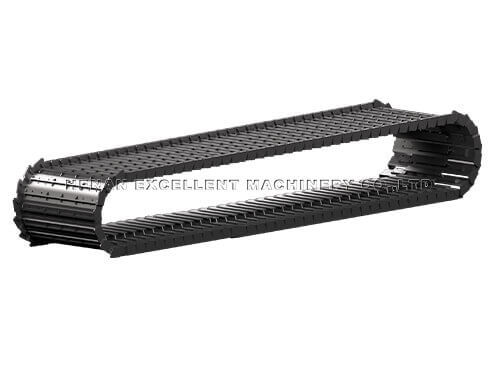

Pans

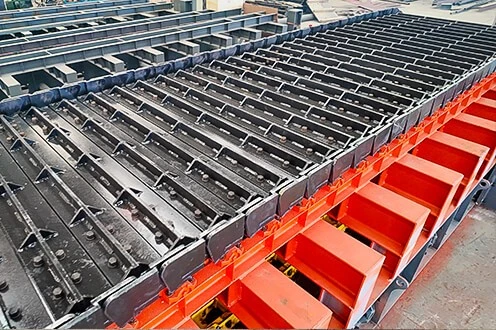

The pans bolted to the chain with high strength bolts and nuts, which can be replaced individually in situ without disturbing the rest of the apron feeder.
According to different working conditions, apron plate feeder can choose heavy duty cast manganese steel or welded construction with ribbed reinforcements, which is suited for materials with high load and high impact conditions.

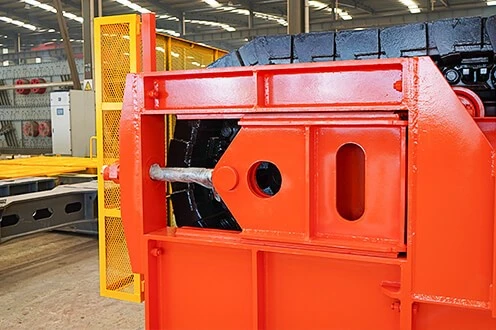

Tail Tension Device
The tension device is used to tighten and adjust the horizontal position of the chain to ensure that the chain tightness is moderate and make it run smoothly. When the pans are suddenly impacted by the material, the composite spring can play a buffer role to protect the pans and other components from damage.
Apron Plate Feeder Features
Durable And Impact-resistant
Our apron plate feeder chain plates are made by welding low-alloy steel plates. The shaft body is hardened. Combined with the special crawler chain for bulldozers, it can strongly resist the long-term impact and erosion of various hard minerals, with a low wear rate and a service life that is 20-30% longer than that of ordinary models.
High Production Capacity
Our apron plate feeder has a production capacity of 200 - 1500 t/h, capable of supporting 24-hour uninterrupted operation. It can precisely meet the large-scale ore transportation needs of the mine, ensuring continuous feeding from the storage bin to the crusher, and improving mining efficiency.
Suitable For Various Ores
Our apron plate feeder can stably convey various irregular ores with a particle size of ≤ 1500mm and a specific gravity of ≤ 2.0t/m³. Whether it is coarse ore blocks or fine ore materials, they can be smoothly transported, effectively avoiding ore blockages.
Strong Environmental Tolerance
Our apron plate feeder can operate stably within a temperature range of -30℃ to +50℃. The entire machine has undergone anti-corrosion spraying treatment, enabling it to handle the harsh working conditions in mines, such as dust, humidity, and large temperature differences, without rust or malfunctions.
Multiple Safety Protections
Our apron plate feeder is equipped with multiple devices such as speed monitoring, blockage alarm, chain break protection, and overload protection. It supports reverse material flow delay startup logic and can quickly respond to abnormal situations such as ore blockage and equipment overload, in line with mine safety regulations.
Modular Design
The main shaft and sprocket of our ore feeder, as well as other core components, are connected by expansion sleeves. The modular design enables easy disassembly and assembly without the need for complex tools. The wear parts can be replaced quickly, significantly reducing the downtime for maintenance in the mines.
Contact Us For Best Price
Submit your requirements and talk with one of our technical engineer about your project.
Apron Plate Feeder Brochure Download
Apron Plate Feeder Application

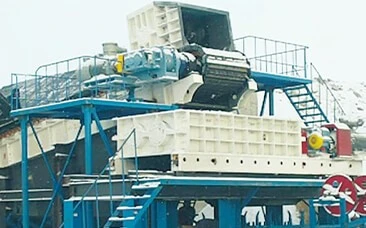

Crusher Feeding
One machine covers full range of materials, such as cement, ironore, sand, coal, limestone, fertilizers and so on. Unloading of material of any size range, size up to 1,500 mm, suitable for a wide variety of abrasive materials,each unit is tailor-made to suit crusher.
Wagon Unloading

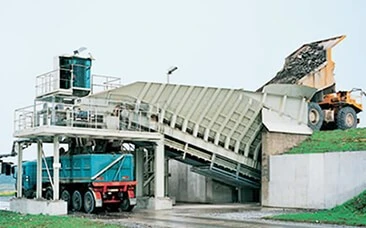

Receive mine material directly from dump trucks, unloading of multiple trucks at once, suitable for unloading in combination with other transportation equipment, high impact load resistance.

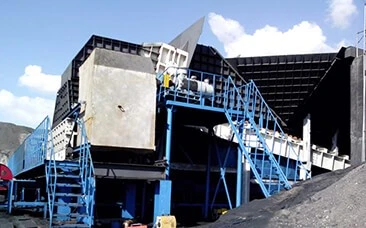

Hopper Discharge
Pan of width up to 3,000 mm suitable for large block materials, vertical or even negative angle walls for extremely sticky materials, reasonable pan shape design for better cleaning.

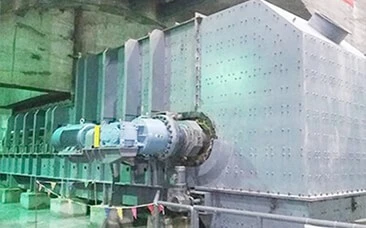

Stockpile Discharge
Several short apron feeders in series,unlimited on the height of material stockpile,heavy duty design ensures reliable material extraction
Application Materials
- Mining
- Coke
- Copper Ore
- Overburden
- Potash
- Aggregate
- Clay
- Iron Ore
- Sand
- Gangue
- Cement
- Clinker
- Gold Ore
- Gravel
- Uranium Ore
- Coal
- Gypsum
- Silver Ore
- Nickel
- Oil Shale
- Lignite
- Limestone
- Bauxite
- Kimberlite
- Quartzite
Manufacturing Facilities
A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. EXCT owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.
Strict Quality Control
At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.
EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.

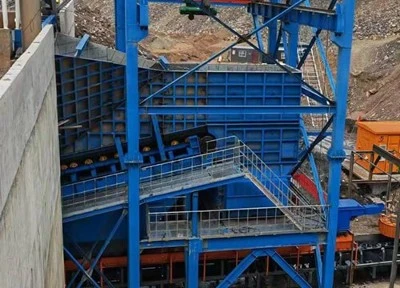

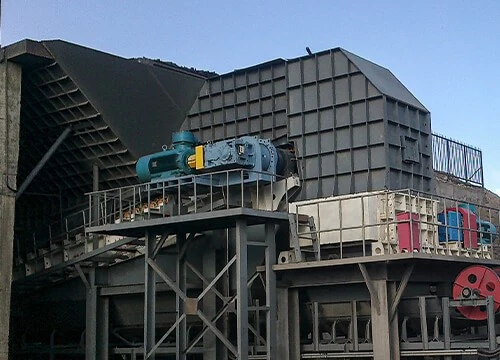

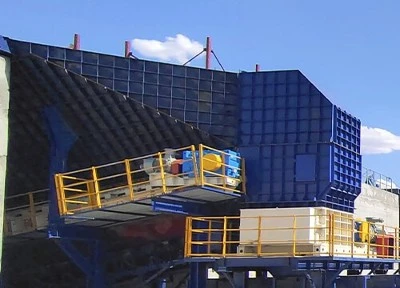

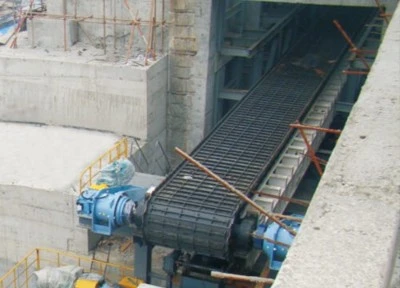

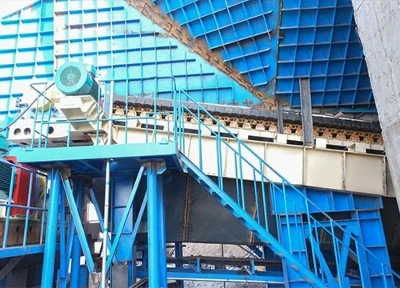

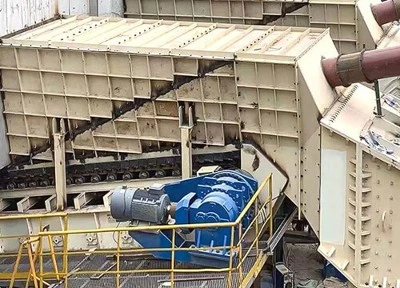

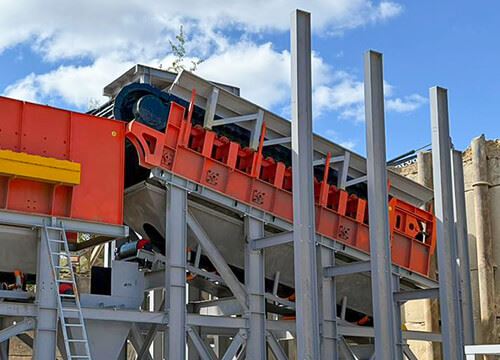

Apron Plate Feeder Cases
Submit your requirements and talk with one of our technical engineer about your project.
Get The Most Suitable Product Solution And Quotation For Free!!!
General Technical Specifications
apron plate feeder are customized for each application material to provide the best configuration and meet all your requirements. For more configurations please contact our technical engineers.
| Model | Pan width (mm) |
Speed (m/s) |
Max feeding size (mm) |
Rail (pcs) |
Capacity (m³/h) |
Length(m) |
| BL800 | 800 | 0.01～0.25 | 350 | / | 50～350 | 2～15 |
| BL1000 | 1000 | 0.01～0.25 | 470 | 1 | 100～510 | 3～20 |
| BL1200 | 1200 | 0.01～0.2 | 650 | 1 | 120～595 | 3～20 |
| BL1400 | 1400 | 0.01～0.2 | 680 | 2 | 140～850 | 6～20 |
| BL1600 | 1600 | 0.01～0.2 | 700 | 2 | 320～1300 | 6～20 |
| BL1800 | 1800 | 0.01～0.15 | 800 | 2 | 500～1560 | 8～20 |
| BL2000 | 2000 | 0.01～0.15 | 1000 | 3 | 500～1850 | 8～20 |
| BL2400 | 2400 | 0.01～0.15 | 1500 | 3 | 500～2700 | 8～20 |
| BL2800 | 2800 | 0.01～0.15 | 1800 | 4 | 1000～4000 | 10～20 |
Selection Instruction
1.Which material to be handling:______
2.Handling capacity: ______t/h
3.Material density: ______t/m³
4.Center distance between the head sprocket and tail sprocket :______m
5.Is the layout of the apron plate feeder inclined or horizontal ? If it is inclined,what is the inclined degree______°
6.Max. granule size of the feeding material: ______mm
7.Max. Granule's percentage in whole material:______ %
8.What equipment is used to feed the material into the apron feeder:______
9.What equipment is used to discharge the material from the apron feeder:______
10.Working power supply: ______V ______HZ
11.Required quantity: ______
12. Under normal circumstances, the upstream equipment of the apron plate feeder is the hopper. In order to facilitate our engineers to calculate the power of the apron feeder, can you provide the preliminary design scheme or hand-drawn drawings of the hopper?
Apron Plate Feeder Spare Parts

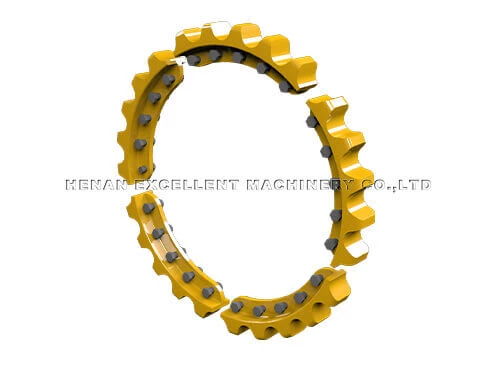

Sprocket Tooth Ring
Chain

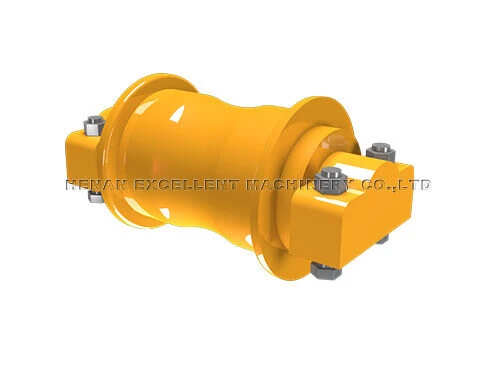

Supporting Roller
Return Rollers

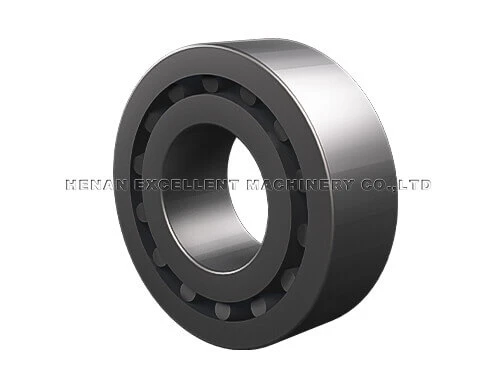

Bearings
Pans
Apron Plate Feeder Service
Project Feasibility Report
Site Design and Planning
Model Selection and Proposal
Model Selection Calculation
3D Modeling and Drawings
Civil Design
Installation and Commissioning
Remote Diagnosis
Training Service
Maintenance Schedule
Who We Are?
EXCT is committed to open-pit mining (coal industry, oil shale, etc.) crushing and screening production system, EPC general contract construction and production and operation services, as well as large crushing equipment, screening equipment, conveying equipment, feeding equipment, environmental protection equipment and other special equipment research and development, manufacturing, sales and service as one of the modern high-tech enterprises.
We have more than 60 national patents and have received provincial and ministerial scientific achievement certifications. Our core products have attained performance metrics that meet leading international standards, earning multiple national and provincial technology awards.
We create value for global mining customers through advanced process technology, enhancing operational reliability, efficiency, and precision. Leveraging sophisticated equipment and deep industry knowledge, we innovate across material crushing, screening, conveying, dust removal, storage, and automation systems. Our service system offers one-stop professional support throughout the project lifecycle-from engineering consulting and scheme design to equipment production, installation, commissioning, spare parts supply, and operational support.
Aligned with evolving global economic trends, we are building an international presence focused on technological and service innovation. We cultivate versatile talent and experienced service teams to strengthen our competitiveness in the international market, delivering high-value solutions that support the advancement of national industries worldwide.
200,000
Area Cover(㎡)
1000+
Production & Testing Tools
3000+
Global Customer
60+
Existing Patent
Partial Advanced Production Equipment
A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. EXCT owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.
Five-axis Gantry Machining-center
Vertical CNC Machining Center
Vertical Machining Center
Gantry Machining Center
CNC Boring And Milling Machining Center
Laser Cutting Machine
Laser Pipe Cutting Machine
Welding Robot Workstation
Trolley Resistance Furnace
Shot-blasting Machine
Our Main Products
1. Crushers & Screening Equipment: Mineral Sizer, Feeder Breaker, Banana Screen, Roller Screen, Inclined Screen, Vibrating Screen, Trommel Screen, Linear Vibrating Screen and Vibrating Feeder etc.
2. Belt Conveyor Equipment: Trough Belt Conveyor, Pipe Conveyor, Corrugated Sidewall Belt Conveyor, Suttle Conveyor and Portable Belt Conveyor etc.
3. Bulk Material Handling Equipment: Apron Feeder, Bucket Elevator, Z Bucket Elevator,Trough/Drag Chain Conveyor, Screw Conveyor and Pan Conveyor etc.
4. Spare Parts: Conveyor Roller/Idler, UHMW-PE Idler, Conveyor Pulley, Conveyor Cover, Belt Sway Switch and Vibrating Motor etc.
Mineral Sizer
Feeder Breaker
Apron Feeder
Banana Screen
Roller Screen
Inclined Screen
Belt Conveyor
Sidewall Belt Conveyor
Trommel Screen
Bucket Elevator
Drag Chain Conveyor

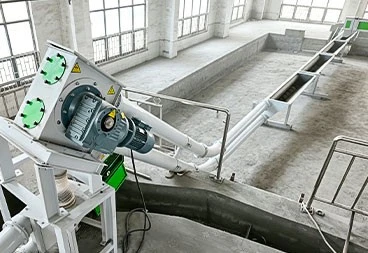

Tubular Drag Conveyors
