Cable conveyors utilize a chain and disc circulation system within the pipe to move materials, effectively mitigating material flow issues. In terms of layout flexibility and conveying distance, cable conveyors can be adjusted at any angle, whether for vertical lifting, horizontal conveying, or complex Z-shaped, C-shaped, S-shaped, or circular configurations, all performing well in their application. Furthermore, the use of external bearings isolates the power unit from the material, and combined with a fully enclosed pipe system, achieves a sealed conveying system, minimizing dust emissions.
Cable Conveyor Basic Information
|
Product Name: |
Cable Conveyor |
|
Product Models: |
TCA-89, TCA-108, TCA-133, TCA-159, TCA-219, TCA-273, TCA-325 |
|
Product Materials: |
Carbon steel / 304 / 316 (materials can be customized as per requirements) |
|
Pipe Diameter (mm): |
50, 80, 100, 125, 150, 200, 250, 300 |
|
Arrangement Form: |
Horizontal / Inclined / Vertical Combination |
|
Chain Type: |
Ring chain type / Plate chain type / Steel rope type |
|
Main Disc Materials: |
Nylon (food grade), reinforced nylon, POM (plastic), polytetrafluoroethylene (high temperature resistant and food grade), polyethylene (PE), stainless steel 304 |
|
Conveying Capacity: |
1 - 100 m³/h (customized as per requirements) |
|
Application Scenarios: |
Toxic, harmful, prone to dust, need for enclosed and pollution prevention, prevention of material deterioration. |
|
Application Fields: |
Food, grains, medicine, chemical industry, building materials, plastics, metallurgy, new energy, etc. |
|
Applicable Materials: |
Conveying powdery, granular and lumpy materials |
Cable Conveyor Working Principle
When in horizontal transportation, the material particles are pushed forward by the chain plates in the direction of movement.
When the internal friction force between the layers of the material is greater than the external friction force between the material and the pipe wall, the material moves forward along with the chain plates, forming a stable material flow.
When in vertical transportation, the material particles in the pipe are pushed upward by the chain plates. Because the lower feeding prevents the upper material from sliding down, a lateral side pressure is generated, thus enhancing the internal friction force of the material. When the internal friction force between the materials is greater than the external friction force between the material and the inner wall of the pipe and the weight of the material, the material moves upward along with the chain plates, forming a continuous material flow.
Cable Conveyor Details
Why Use Cable Conveyor?
Fully Enclosed Conveying
No dust leakage, no pollution. No dust collector is required at the outlet. Environmentally friendly and low energy consumption.
Less Material Breakage
The conveying process is smooth, with minimal internal movement between the materials. There are few damages, which can ensure the integrity of the materials. It is suitable for abrasive materials.

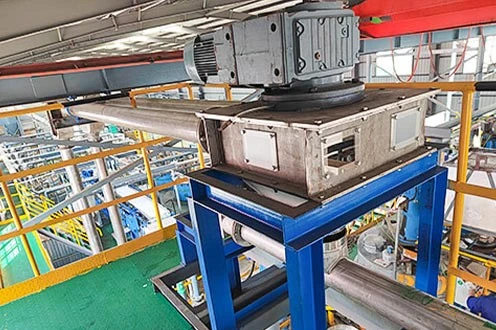

Compact Structure
Low space occupation. It can change the conveying direction in three dimensions, unaffected by terrain, angle and height. It is highly suitable for use in limited spaces.
Flexible And Adaptable
It can achieve long-distance transportation, and multiple loading and unloading ports can be deployed at will to meet the on-site process requirements; it is easy to achieve centralized control, thereby enhancing the degree of automation.
Contact Us For Best Price
Submit your requirements and talk with one of our technical engineer about your project.
Cable Conveyor Applications
Cable Conveyor is used by almost any industry that needs to move materials gently and quickly.
| Food Industry: | Such as flour, starch, grains, milk powder, food additives, etc. |
|
Fine Chemicals: |
Such as pigments, dyes, coatings, carbon black, titanium dioxide, iron oxide, ceramic powder, calcium carbonate, light calcium, bentonite, molecular sieve, kaolin, silica gel powder, activated carbon, etc. |
| Pesticide Ores: | Such as urea, ammonium chloride, ammonium bicarbonate, baking soda powder, solid pesticides, tungsten powder, pesticide additives, copper concentrate powder, coal powder, phosphate powder, alumina powder, etc. |
| Building Materials: | Such as cement, clay, yellow sand, quartz sand, clay powder, silica, limestone powder, dolomite powder, wood chip powder, glass fiber, silicon dioxide, talc powder, etc. |
Cable Conveyor Packaging And Delivery
From the scheme design to production manufacturing, and then to vehicle loading and delivery, our customized pipe chain conveyor service controls the entire process! The exclusive customized equipment is successfully dispatched, precisely matching the customer's production scenarios.

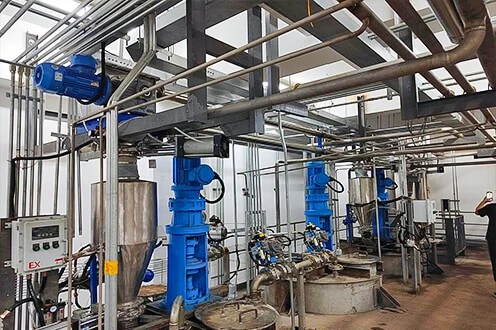

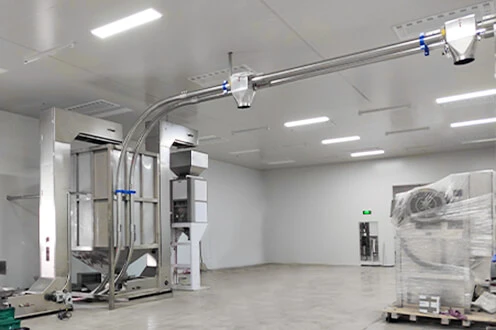

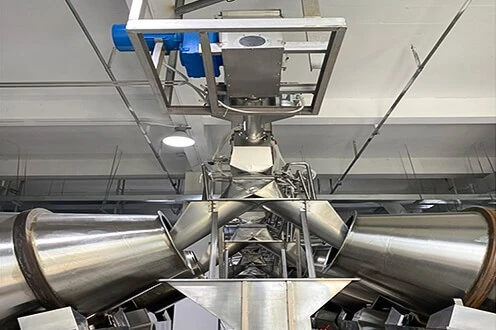

Cable Conveyor Site
Whether it is the raw material conveying line in the food industry, the powder transfer process in the chemical workshop, or the material transportation process in the new energy factory, our Cable Conveyor have been deeply integrated into various industrial sites, helping to ensure efficient production operations.
Cable Conveyor Specifications
| Model | Power(kw) | Pipe Diameter | Capacity(m/h) |
| TCA-80 | 0.37 | DN80 | 0.3-5 |
| TCA-100 | 0.4-4 | DN100 | 0.45-8 |
| TCA-150 | 2-7.5 | DN150 | 3-19 |
| TCA-200 | 3-11 | DN200 | 5-40 |
| TCA-250 | 3-18.5 | DN250 | 15-60 |
* The above technical specifications are for reference only, we can also provide customized solutions according to customer requirements.
Get The Most Suitable Product Solution And Quotation For Free!!!
Submit your requirements and talk with one of our technical engineer about your project.
About EXCT
EXCT is committed to open-pit mining (coal industry, oil shale, etc.) crushing and screening production system, EPC general contract construction and production and operation services, as well as large crushing equipment, screening equipment, conveying equipment, feeding equipment, environmental protection equipment and other special equipment research and development, manufacturing, sales and service as one of the modern high-tech enterprises.
We have more than 60 national patents and have received provincial and ministerial scientific achievement certifications. Our core products have attained performance metrics that meet leading international standards, earning multiple national and provincial technology awards.
We create value for global mining customers through advanced process technology, enhancing operational reliability, efficiency, and precision. Leveraging sophisticated equipment and deep industry knowledge, we innovate across material crushing, screening, conveying, dust removal, storage, and automation systems. Our service system offers one-stop professional support throughout the project lifecycle-from engineering consulting and scheme design to equipment production, installation, commissioning, spare parts supply, and operational support.
Aligned with evolving global economic trends, we are building an international presence focused on technological and service innovation. We cultivate versatile talent and experienced service teams to strengthen our competitiveness in the international market, delivering high-value solutions that support the advancement of national industries worldwide.
200,000
Area Cover(㎡)
1000+
Production & Testing Tools
3000+
Global Customer
60+
Existing Patent
Manufacturing Capacity
A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.
Five-axis Gantry Machining-center
Vertical CNC Machining Center
Vertical Machining Center
Gantry Machining Center
CNC Boring And Milling Machining Center
Laser Cutting Machine
Laser Pipe Cutting Machine
Welding Robot Workstation
Trolley Resistance Furnace
Shot-blasting Machine
Our Main Products
1. Crushers & Screening Equipment: Mineral Sizer, Feeder Breaker, Banana Screen, Roller Screen, Inclined Screen, Vibrating Screen, Trommel Screen, Linear Vibrating Screen and Vibrating Feeder etc.
2. Belt Conveyor Equipment: Trough Belt Conveyor, Pipe Conveyor, Corrugated Sidewall Belt Conveyor, Suttle Conveyor and Portable Belt Conveyor etc.
3. Bulk Material Handling Equipment: Apron Feeder, Bucket Elevator, Z Bucket Elevator,Trough/Drag Chain Conveyor, Tubular Drag Chain Conveyors, Screw Conveyor and Pan Conveyor etc.
4. Spare Parts: Conveyor Roller/Idler, UHMW-PE Idler, Conveyor Pulley, Conveyor Cover, Belt Sway Switch and Vibrating Motor etc.
Mineral Sizer
Feeder Breaker
Apron Feeder
Banana Screen
Roller Screen
Inclined Screen
Belt Conveyor
Sidewall Belt Conveyor
Trommel Screen
Bucket Elevator
Drag Chain Conveyor

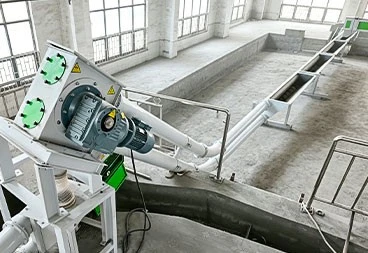

Tubular Drag Conveyors
