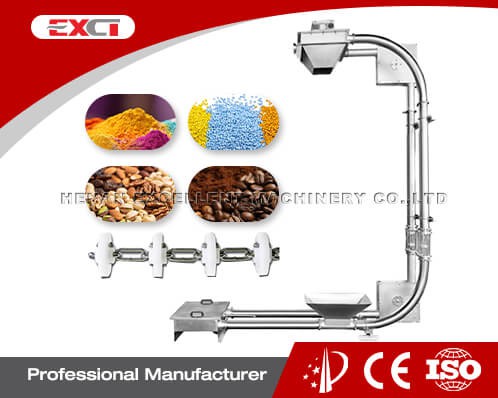

Tubular Cable Conveyor

The tubular cable conveyor has extremely strong adaptability to materials and can meet the conveying needs of multiple industries such as food, chemical, and environmental protection. It can stably handle various materials ranging from sugar, milk powder to carbon black, resins, as well as viscous and easily tangled sludge, biomass particles, and filter cakes.



Compared with the screw conveyor, it performs better in terms of energy consumption, conveying distance, and material protection - energy consumption can be reduced by more than 30%, the conveying distance is longer, and there is no material fragmentation throughout the process. It is particularly suitable for materials with high integrity requirements such as pellet feed and food raw materials, thereby achieving a simultaneous reduction in operating costs and material loss.







The core transmission unit of our pipe chain conveyor is powered by the drive device, which drives the chain and the discs fixed on the chain to perform a circular motion within the sealed pipeline.



When the materials enter the pipeline through the inlet, the Disc will exert a continuous thrust on the materials.
During horizontal transportation, the internal friction force between the material particles is greater than the external friction force between the materials and the pipe wall. Under the drive of the Disc thrust, a stable material flow is formed and moves forward;
During vertical transportation, the continuous feeding at the lower part prevents the upper part of the materials from sliding down, causing lateral side pressure between the materials and enhancing the internal friction force. When the internal friction force is greater than the external friction force between the materials and the pipe wall as well as the self-weight of the materials, the materials will be synchronized lifted upward by the Disc and finally discharged from the outlet.

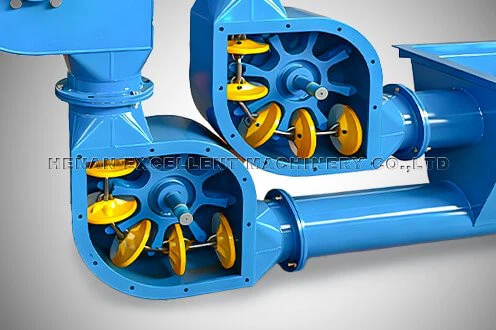

Meanwhile, the tensioning device adjusts the chain tension in real time to ensure stable transmission; the steering device assists in switching the direction of the chain within the pipeline, and in combination with the fully enclosed structure of the sealed pipeline, it enables the material to maintain continuous and leak-free transportation in various combined conveying trajectories such as horizontal, vertical, and inclined, meeting the needs of material transfer in multiple scenarios.















Submit your requirements and talk with one of our technical engineer about your project.

Contact Us For Best Price





Our tubular cable conveyor boasts extremely strong adaptability to materials and extensive application capabilities across various industries. It can precisely meet the needs of transporting various special materials, and can also efficiently enhance production in multiple fields: it can stably handle viscous materials such as pigments, sludge, and asphalt, as well as dust-prone materials like carbon black and fly ash. For materials prone to moisture absorption or deliquescence, it can achieve safe transportation by filling the pipeline with protective gases. Moreover, it has certain impact resistance for materials containing large debris.
It is widely used in industries such as the chemical industry (pigments, dyes, resins, pesticides, titanium dioxide, etc.), the plastic industry (PVC, PE, PET plastic pellets and powders), the food industry (flour, sugar, cocoa powder, grains, potato chips and various snacks), the building materials industry (cement, fillers, gypsum powder, etc.), the environmental protection industry (sludge, fly ash, desulfurization gypsum), and the mining industry (mineral powder, phosphate salts, etc.), providing customized solutions for material transportation in various industries.









* The above technical specifications are for reference only, we can also provide customized solutions according to customer requirements.
