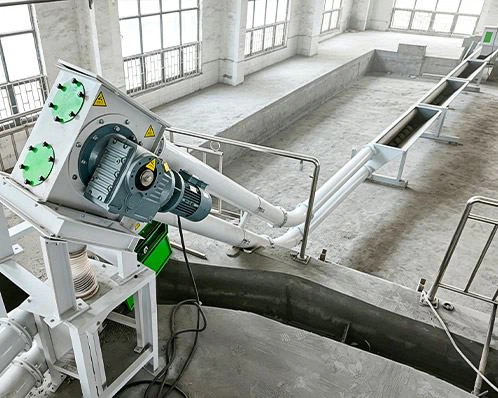

![[[smallImgAlt]]](/uploads/16873/disc-conveyor79f7f.jpg)
The disc conveyor can easily transport large quantities of materials with high moisture content and high viscosity. It can continuously convey powders, ultra-fine powders, granules and small pieces of materials.
The fully enclosed dust-free transportation can effectively isolate corrosive, toxic and sticky materials.
It supports three-dimensional arbitrary turning transportation, which is flexible, efficient and labor-saving. It can be customized as needed and is an ideal conveying equipment for various industries.
Working Principle Of Disc Conveyor
Power Transmission
The drive device (motor + reducer) drives the sprocket to rotate, causing the chain in the pipeline to move in a circular motion. The automatic tensioner synchronously adjusts the tightness of the chain to ensure stable meshing and prevent slippage or jamming.
Material Pushing
The chain discs installed at equal intervals on the chain move closely along the pipe wall like "pistons", using their own thrust and the friction of the materials to push the materials fed into the inlet into a continuous material column.
Multi-dimensional Conveying
Through the steering device, it can achieve horizontal, vertical, and inclined conveying at any angle. It can flexibly adapt to the layout of the factory space. The materials move smoothly within the pipeline without any violent impact.
Discharge And Cleaning
When the materials reach the discharge outlet, the chain turns and the chain discs push the materials out to complete the discharge.

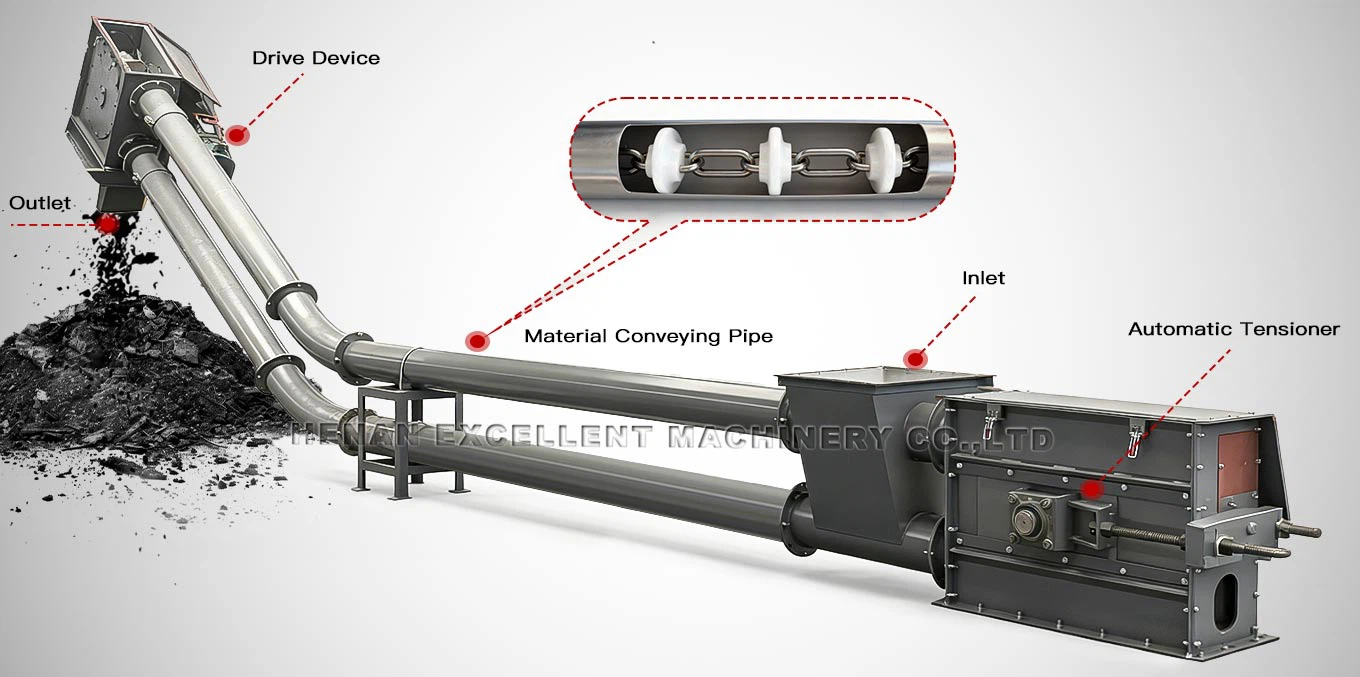

Main Structure Of Disc Conveyor

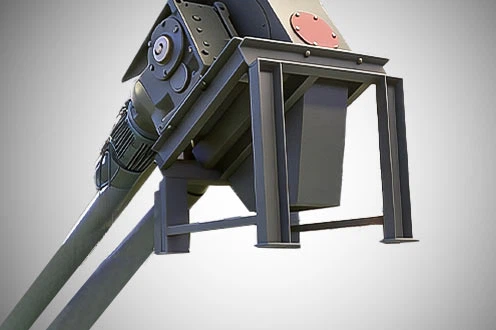

- Drive Device: Motor, reducer, driving sprocket, coupling, providing power for the entire machine.
- Conveying Pipeline: Circular sealed pipeline, divided into straight pipes and curved pipes, serving as the material transportation channel.
- Chain And Disc: Chain as the traction component, disc as the material pushing component, driving the material to move.

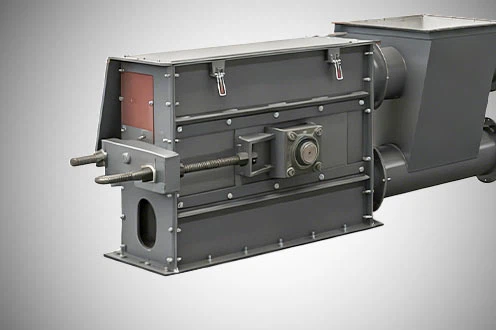

- Tensioning Device: Tail-end tensioning mechanism, ensuring the chain is appropriately loose and preventing skipping teeth and chain detachment.
- Inlet And Outlet Ports: Material inlet port, outlet port, flange connection.

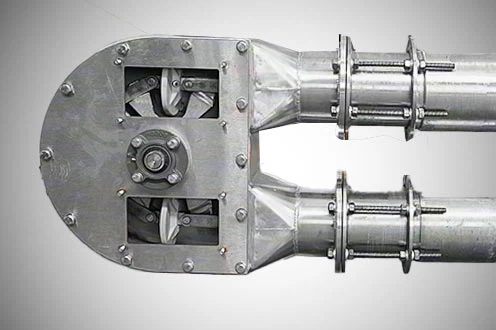

- Observation Port / Inspection Port: For daily inspection and clearing of blockages.
- Electrical Control System: Control cabinet, frequency converter, overload protection, emergency stop button, etc.
Disc Conveyor Details
Why Choose Disc Conveyor ?
|
Sealing & Dust Control |
Fully enclosed system with minimal dust leakage; environmentally friendly |
|
Material Integrity |
Excellent; gentle conveying, almost no degradation or segregation |
|
Adaptability to Complex Routes |
High; supports horizontal, vertical, and multi-bend layouts |
|
Energy Consumption |
Low; slow speed, low power, high efficiency |
|
Maintenance & Service Life |
Simple maintenance, low wear, long service life |
|
Material Compatibility |
Powders, granules, light lumps, and blended materials; very wide application range |
|
Installation Flexibility |
Very high; compact layout, space-saving |
|
System Complexity / Initial Investment |
Low |
|
Noise & Working Environment |
Low-noise operation, clean and quiet |
Disc Conveyor Applications
Applicable Industries: Chemicals, grains, building materials, medicine, food, mining, plastics, new energy, etc.
Applicable Materials: Powders, granules, fine block-like materials, such as flour, cement, plastic particles, ore powder, chemical powder materials, etc.
Applicable Scenarios: Transportation of toxic, harmful, dust-prone, need for closed containment to prevent pollution, and prevention of material deterioration.
Food
Coffee
Iron Oxide
Fertilizer
Sludge Particles
Dyes
Unable To Find Your Product?
If your product is not listed here, please contact us to learn whether or not EXCT tubular drag conveyors are the right solution for your application.
Remember that you can also request a product test if necessary.

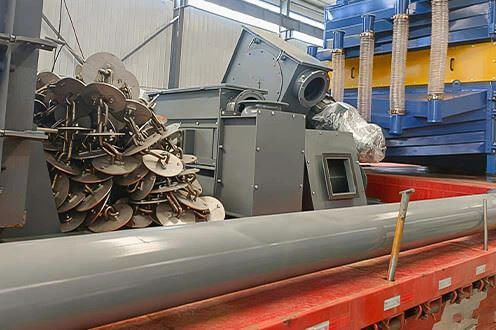

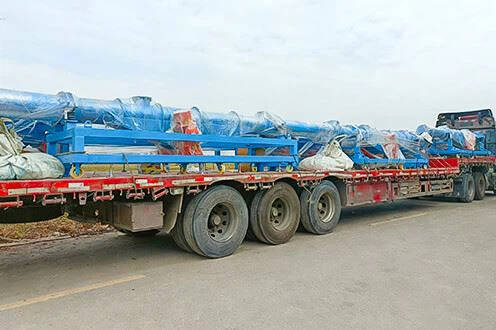

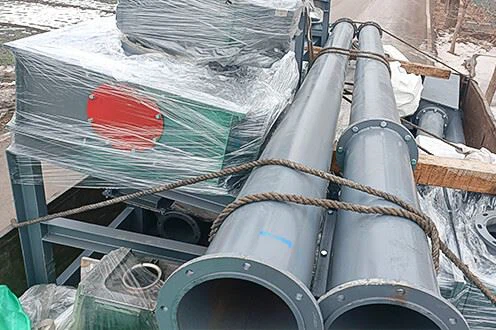

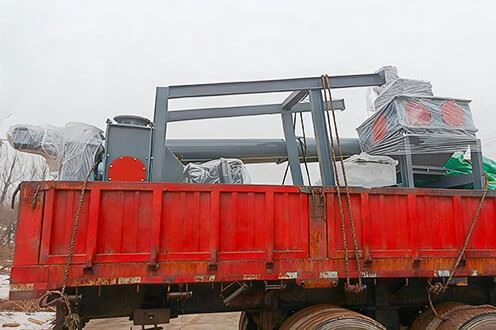

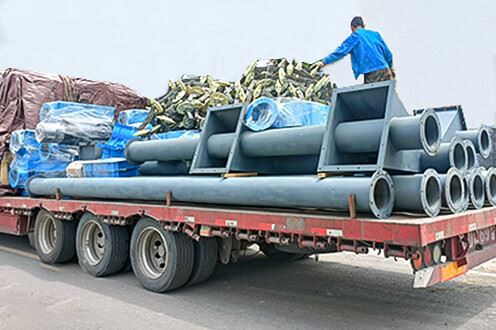

Disc Conveyor Packaging And Delivery
As a manufacturer of Chain And Disc Conveyor, we take full responsibility for every step from custom design, production and manufacturing to loading and shipping. We can customize equipment of various specifications as per customer requirements and achieve concurrent and cross-regional distribution of multiple devices. Moreover, with our powerful production and logistics system, we ensure that customer orders can be delivered without any waiting time, fully meeting the customized needs of customers.

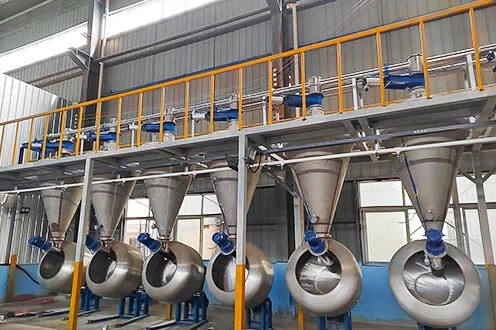

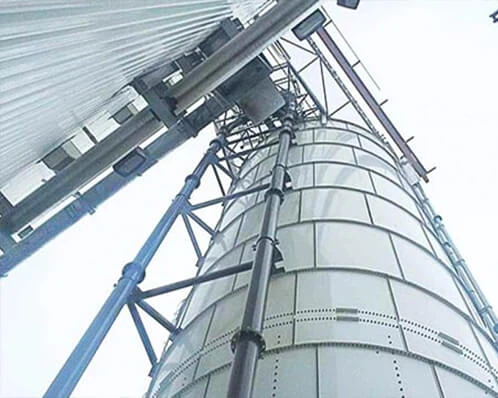

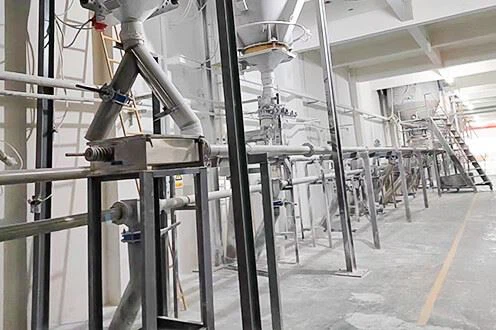

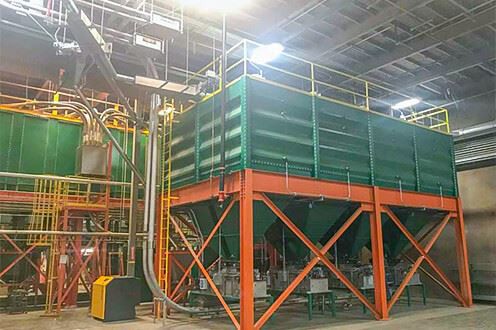

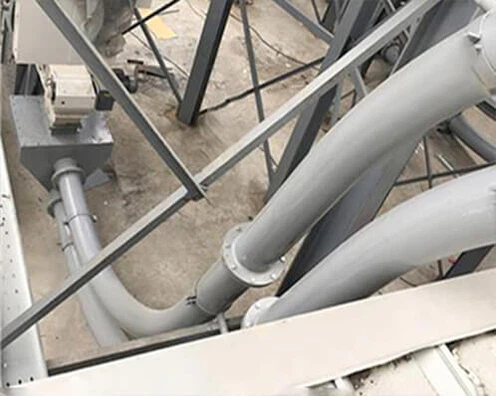

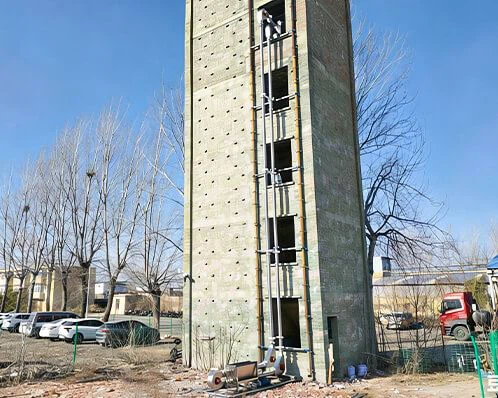

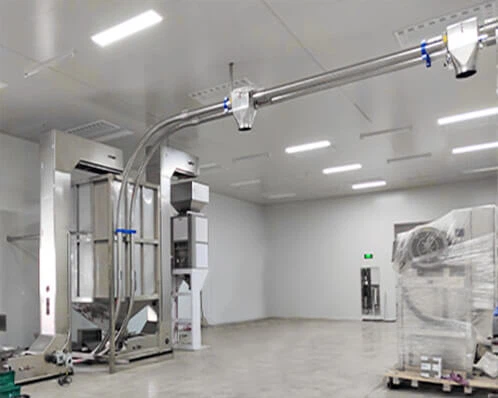

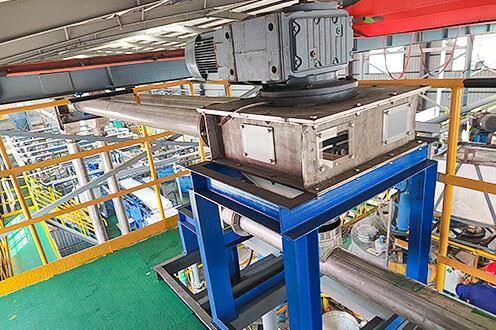

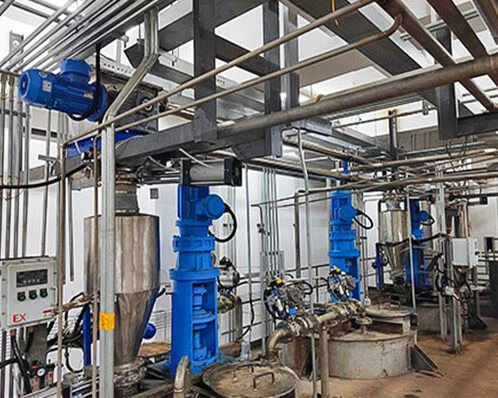

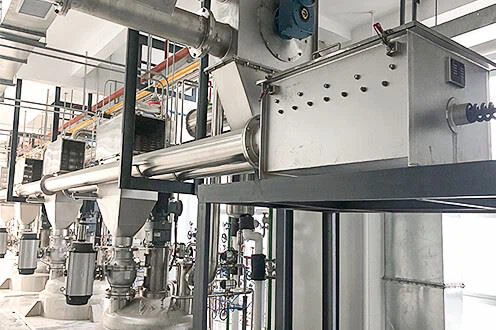

Disc Conveyor Site
Our Tubular Drag Chain Conveyor, with its outstanding adaptability and stability, has been deeply integrated into the production sites of numerous industries such as food, chemical, pesticide, ore, building materials, plastic, new energy, and environmental protection. It has become the core equipment for material transportation in various fields, fully meeting the material transportation needs of different industries.
Disc Conveyor FAQ
Below are some common questions and answers regarding disc conveyors.
Will It Damage The Roasted Coffee Beans?
Not really. The pipe conveyor operates at a low speed and moves smoothly, and the disc moves gently, making it suitable for fragile materials such as coffee beans.
Comparison Of Disc Conveyor Plate Chain, Ring Chain And Steel Wire Rope
Plate Chain: High strength, wear-resistant, suitable for heavy-load and abrasive materials.
Ring Chain: Simple structure, low cost, suitable for general materials.
Steel Wire Rope: Flexible, low noise, suitable for scenarios requiring smooth operation and low noise.
Gap Between Disc Conveyor Disc And Pipe Wall
The gap is usually between 0.3 and 0.5 mm, which is very small. The material hardly falls through the gap, and it has little impact on the output.
Suitable Disc Materials For Corrosive And Abrasive Materials
Recommendations:
- Stainless steel (such as 304/316) is resistant to general corrosion.
- Engineering plastics (such as nylon, UHMW-PE) are resistant to corrosion and wear-resistant.
- Wear-resistant alloys/coatings are used for high wear conditions.
Disc Conveyor Specifications
| Model | Power(kw) | Pipe Diameter | Capacity(m/h) |
| TCA-80 | 0.37 | DN80 | 0.3-5 |
| TCA-100 | 0.4-4 | DN100 | 0.45-8 |
| TCA-150 | 2-7.5 | DN150 | 3-19 |
| TCA-200 | 3-11 | DN200 | 5-40 |
| TCA-250 | 3-18.5 | DN250 | 15-60 |
* The above technical specifications are for reference only, we can also provide customized solutions according to customer requirements.
